Mod info.



This page contains many pics of the swap that I took as me and a friend did the swaps. It was a good time and I learned a lot by actually doing it! It took us about a week, working at night on the weekdays, and a Saturday and Sunday. There are many pics so please be patient. Click the pictures for a much larger image.


One of the new heads and the new cam. These are ported and polished, new valve seals and a 3 angle valve job

Combustion chamber of new heads.

new lower intake

Interesting setup for draining the coolant from the radiator that we devised.

Engine bay before digging in.

Upper intake off.

Upper off from a wierd angle.

Fuel rail is out!

All electronics removed from the engine. (Injector harnesses, DIS removed, cam sensor, crank sensor). All accessories removed.

Pic of how we laid the electronics off to the side of the car.

Lower intake and water pump are off. Pushrods and lifters are visible.

Valve covers off, passenger side rockers off.

Drivers side rockers off.

Heads off, pushrods removed.

Timing cover removed

Front cover mating surface clean, new tensioner installed.

Reinstalling the cam sensor, being careful to reinstall it in the same position that it was installed before. My friend is holding the sensor, and yes, he works at a local Ford dealership.

An OK picture of the end of the cam sensor going into the oil pump. You can see it on the lower lefthand side of the picture.

Harmonic balancer installed.

Passenger side block mating surface clean.

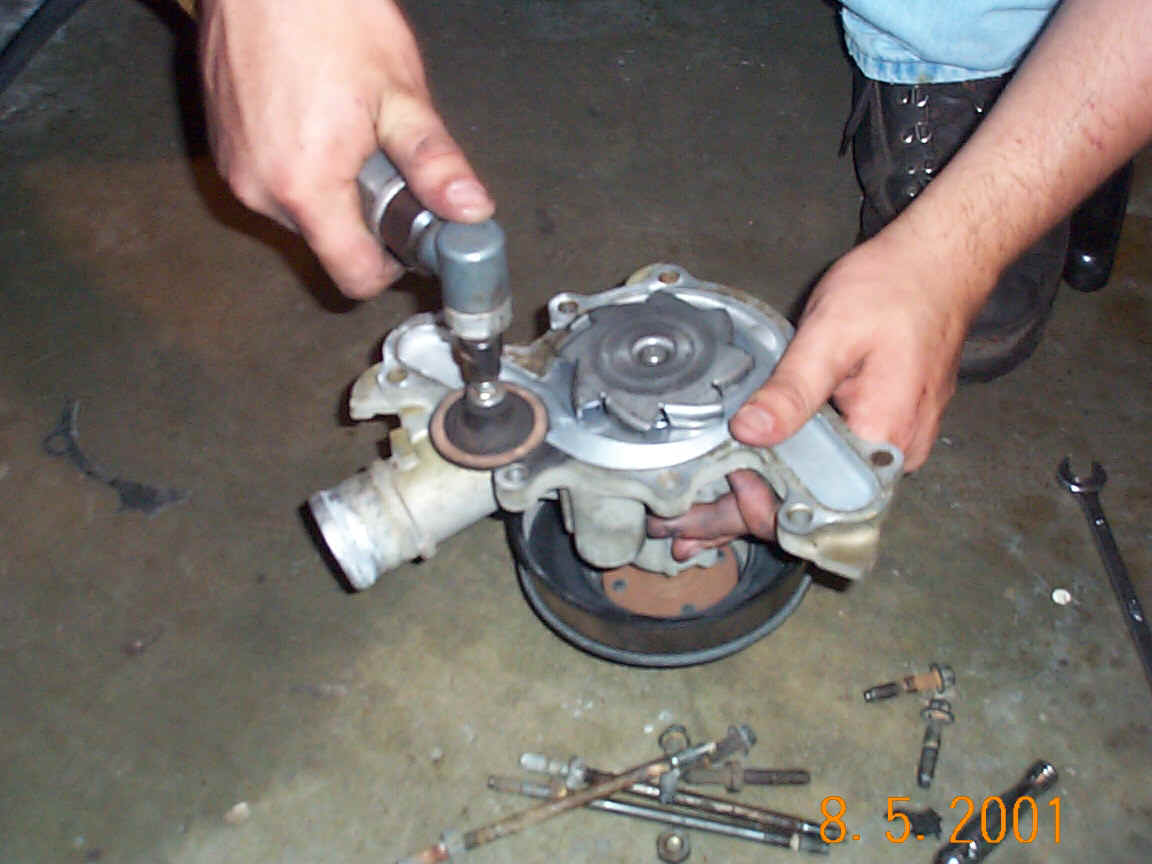

Cleaning the water pump surface to get a good seal!

Water pump installed.


New heads installed with the new roller rockers mounted. Pushrods, that were too short :(, installed also.

New lower intake installed.

Valve covers installed, injectors in, wiring back in place, Adjustable fuel pressure regulator also installed.

Accessories installed.

DONE!!!!!!!!!!!!!!
